Usability Engineering for AI-enabled Medical Devices
Practical implications for the usability engineering of AI-enabled medical devices
May 2026
Dr. Benedikt Janny, Katrin Gernert
Executive Summary
For the safe integration of AI into medical products, the usability engineering process moves further into focus: user profiles change, tasks shift toward the assessment, plausibility check and critical interpretation of AI outputs in the sense of a human-in-the-loop (HITL) and human oversight paradigm, and new potential risks arise, in particular from misinterpretation or missing plausibility checks. At the same time, variable AI outputs and possible system errors make it harder to draw a clear line between a use error and a product error, model limitation or data-induced error.
The article shows how these changes affect all central deliverables of usability engineering, from the use specification as an increasingly dynamic artifact and the task analysis to hazard considerations, usability tests and post-market surveillance. It emphasizes the need for close collaboration between usability experts, clinical departments, risk management and AI development, as well as the importance of continuous monitoring after market launch in the context of Good Machine Learning Practice (GMLP) and AI lifecycle management. The goal is to integrate AI-enabled medical devices into existing clinical workflows in a safe, understandable and reliable way while ensuring patient and user safety as far as possible.
1AI-enabled Medical Devices & Human-AI Interaction
Artificial intelligence has become indispensable in both private and professional everyday life and is increasingly finding its way into medical technology. Alongside numerous benefits, this development also brings challenges. AI can change entire workflows and intervene directly, or through recommended actions, in medical decision-making and medical action.
With regard to the user interface, the key difference between AI-enabled and classic medical devices lies in the kind of information provided to users. Classic medical devices are based on hard-coded parameters and clearly defined limits. If, for example, air bubbles are detected in an ECMO tubing system, the system triggers an alarm and can automatically stop the pump to prevent harm.
With AI-enabled medical devices, by contrast, decisions are not based on rigid parameters but on learned patterns. This enables more complex applications, such as identifying cancerous structures in CT and MRI images, where organ- and patient-dependent tissue variations make rigid parameterization impossible. Through training with positive and negative findings, AI systems can recognize patterns and transfer them to different organ structures. The approach thus resembles human learning. At the same time, the question arises whether AI-supported medical action can be equated with a team member. Like humans, however, AI can make errors that are not solely attributable to technical defects.
A further difference is that classic medical devices always respond identically to identical input, whereas AI medical devices, owing to their ability to learn, can deliver different results for the same situation. This dynamic depends on whether a system is trained only during development or keeps learning after market launch. Because the quality of the training data largely determines the quality of the AI, faulty inputs can lead to wrong conclusions.

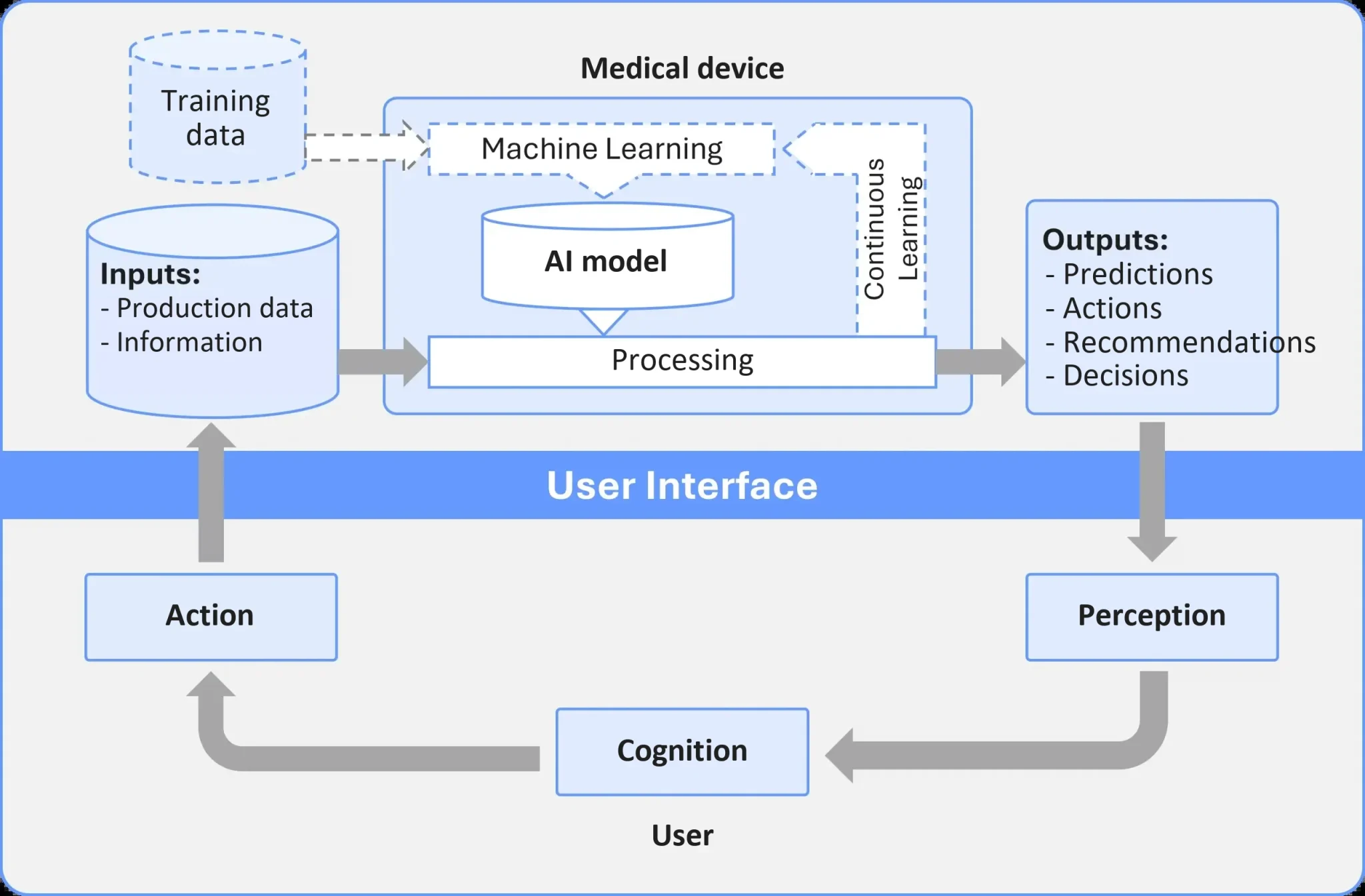

The following figure illustrates this human-AI interaction, which, based on the PCA approach (Perception, Cognition, Action), is represented as a closed loop between user and medical device.
Basic schema of human-AI interaction, adapted from Engler et al. Usability Engineering for
Medical Devices using Artificial Intelligence and Machine Learning Technology – A Position Paper of DKE UK 811.4 (2024)
The AI-enabled system processes data using machine learning and generates outputs such as predictions, recommendations or decisions, which are presented to users via the user interface. Users perceive the information (perception), interpret it (cognition) and act accordingly (action), which feeds new inputs back into the system. Because of continuous learning, these inputs may lead to system adaptations, which in turn can affect the interaction.
2Influences on the usability engineering process for AI-enabled medical devices
2.1 Use specification
Workplace and social exchange can also change significantly through AI-enabled medical devices. If action proposals or automated medical actions come from AI, professional exchange within the team can decrease. Automated medication delivery can also minimize interaction with patients and move workplaces further away from areas close to the patient.
2.2 Task analysis (PCA task analysis)
AI medical devices can change workflows considerably. Instead of making diagnoses entirely on their own, radiologists, for example, already receive suggestions from the AI that serve as the basis for the final diagnostic decision. This initial orientation makes decisions easier but carries the risk that results are accepted without verification. A careful plausibility check is therefore essential.

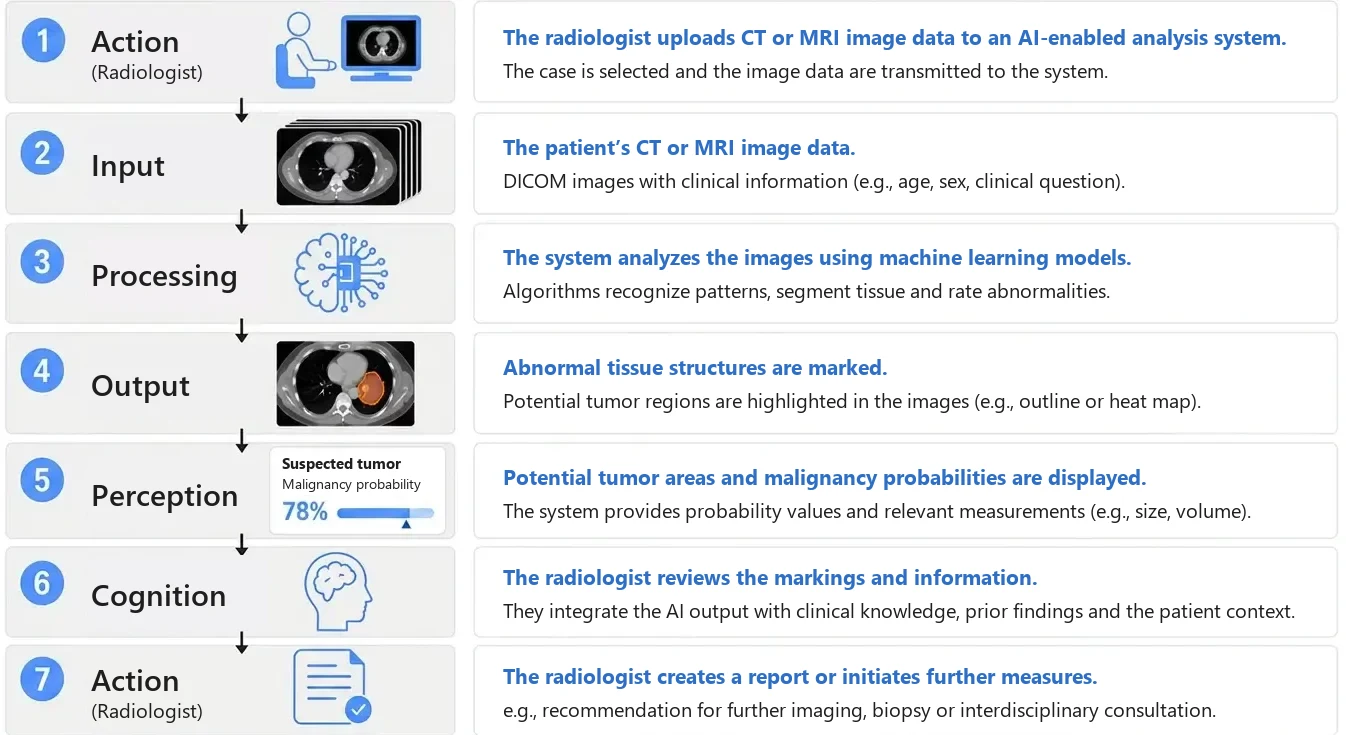

Despite these changes, it remains worthwhile to analyze existing workflows before product development begins, in order to identify tasks that can be automated and those that newly arise from AI-related challenges. The following example illustrates the differences between the current-state scenarios and the task models of the new product generation combined with AI:
The role of radiologists thus shifts from detailed image analysis to assessing the plausibility of the AI output. If the AI also performs actions automatically, the task focus shifts further toward monitoring instead of active execution.
2.3 Use errors in AI-enabled medical devices & resulting hazardous situations
Because of the AI’s upstream medical action (e.g., recommendations, predictions, triage or decision support) and the necessary plausibility check, the cognitive demands on users shift in particular. Compared with classic systems that respond deterministically in identical situations, AI-enabled medical devices can produce varying outputs in similar situations. This variability can foster uncertainty and increase the need for professional judgment. In the use situation, assessing the output itself therefore becomes part of the interaction and a decisive cognitive task.
A key future question is how to assess causes and responsibilities when users follow an AI recommendation that turns out to be medically wrong. The EU AI Act defines actor roles for this purpose, such as provider and deployer (operator or user acting under their own authority). These role definitions structure obligations along the supply and use chain, but they do not automatically resolve the practical question, case by case, of whether a failure was caused by
a) a system or information error,
b) a use error or
c) a combination of both factors.
In summary, intervening or not intervening in the case of faulty, uncertain or ambiguous AI, as well as the final medical action, plays a central role in identifying use errors (and deriving suitable risk controls). Plausibility checks that are not performed or are insufficient are a plausible and probably frequent cause of error in AI-supported use contexts. At the same time, the distinction remains subject to uncertainty in practice: whether an omission counts as a use error depends largely on whether the manufacturer adequately supports the necessity, scope and feasibility of the plausibility check in the specific use situation (among other things through understandable information, a suitable UI, warnings, and traceable limits and uncertainties of the system). The exact implementation will only become clear in the future. The identification of hazard-related use scenarios can be explored in more depth in our knowledge base.
2.4 Usability evaluations
The challenges described in chapter 2.3 directly affect the planning, execution and interpretation of usability evaluations. Classic medical technology tests generally assume that a system delivers consistent and medically correct information for identical input. AI medical devices change this basic assumption: a test participant can interpret the displayed information correctly and apply it formally “right”, and still arrive at a medically wrong result if the AI output itself is faulty. This is where the plausibility check required of users and the related challenges explained in chapter 2.3 come into play. For the assessment in the usability test, the question therefore arises whether an observed problem should be classified as a use error or as a system error (or product error).
Overall, AI medical devices (AI-enabled medical devices) mean that usability evaluations must distinguish more strongly between interpretation errors by users and content errors of the system. Both can look similar but have different causes, risks and regulatory consequences. As a result, multidisciplinary teams, medical reference standards and precise documentation of system outputs during the test become far more important than in classic usability studies.
2.5 Post-market surveillance
Especially for AI-enabled medical devices that continue to be adapted or updated after market launch, post-market surveillance (PMS) gains considerable importance. Manufacturers must ensure that users can use the product efficiently and safely even when outputs change due to new training data or model updates.
The EU AI Act obliges manufacturers to maintain extended monitoring, reporting and documentation processes in order to continuously check model performance, data drift and possible interactions with other AI-enabled medical devices. These AI-specific requirements extend classic PMS and thus also affect the long-term assurance of high usability.
Usability Engineering for AI-enabled Medical Devices: Conclusion
AI fundamentally changes medical technology: instead of deterministic, clearly predictable system responses, dynamic, context-dependent outputs emerge that place new demands on users and their decision-making. In particular, the necessary plausibility check of AI results becomes the central user task and at the same time a critical risk control measure. Roles, workflows and potential sources of error shift markedly, and the clear distinction between use error and system error becomes more complex.
For manufacturers this means: usability engineering must be thought of earlier, deeper and more interdisciplinary, from the use specification to post-market surveillance. Only an integrated interplay of UX, clinical expertise, risk management and AI development can deliver safe, understandable and standards-compliant AI-enabled medical devices.
